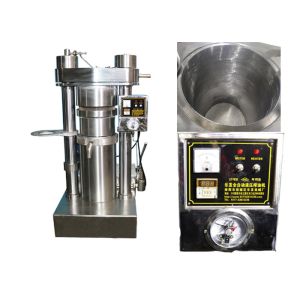

Perilla seed oil processing machine oil extracting machine factory
price
I. Production description
Our perilla seed oil processing machine oil extracting machine factory
price:
1. Our machine use the solid piston is stronger than other similar
machines, it can press the oil seeds very clean.
2. Our machine maximum working pressure is 60Mpa, it can provide
the high pressure to press the raw material.
3. Our machine use fully automatic technology, one person can
operate 4-5 sets machine.
4. Our machine use alloy material, it is stronger than other
machines to ensure the safety of this machine.
5. Our hydraulic tank offer the power for the machine.
Parameter:
| Model | 6YY-185 | 6YY-230A | 6YY-230B | 6YY-250 | 6YY-270 | 6YY-300 | 6YY-335 | 6YY-355 |
|---|
Capacity (kg/batch) | 4 | 8.5 | 9.5 | 11 | 13.5 | 16 | 20 | 23 |
| Working pressure | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa | 60Mpa |
| Weight (kg) | 590 | 924 | 950 | 1070 | 1230 | 1600 | 1750 | 2350 |
Power (3 /single phase) | 1.1/2.2 kw | 1.1/2.2 kw | 1.1 /2.2kw | 1.1/2.2 kw | 2.2/4.0 kw | 2.2/4.8 kw | 2.2/4.8 kw | 3.0/5.0 kw |
Package Size(m) | 0.78*1*1.58 | 0.78*1*1.58 | 0.78*1*1.68 | 0.78*1.04*1.71 | 0.82*1.081*1.75 | 0.94*1.14*1.81 | 0.94*1.16*1.8 | 1.04*1.24*1.92 |
Capacity (Kg/24h) | 190-260 | 500-650 | 600-750 | 650-780 | 800-1000 | 950-1200 | 1100-1400 | 1500-2000 |
| Oil cake diameter | 185mm | 230mm | 230mm | 250mm | 270mm | 300mm | 335mm | 355mm |
| Residual oil | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
Where can use our machine?
Our machine can cold and hot press kinds of seeds:
1. Making oil line:
2. Movable pressing oil:
II. Working Process:
Working principle
This machine is powered by the hydraulic tank that pushs the piston
up to squeeze the raw material in the press kettle.
Workflow( Hot pressing):
Cold press workflow:
Operation step:
III. Our advantages
IV. Packing & Delivery
Packing:
1. Standard export wooden case package.
2. Customized.
Delivery:
We can arrange to ship by sea in generally 7-10 working days after
receipt the deposit. Also we can offer other shipping method, such
as by air, by express, by train and so on. We have many shipping
agent to meet different request for the shipping.
V. Our service
1.Offer the most suitable solution for you.
2. Visiting our factory.
3. Testing machine for you.
4. Always online to help you.
5. Delivery products immediately after receipt tje payment.
6. Change voltage according to your needs.
7. Operation manual, operation video and install video.
